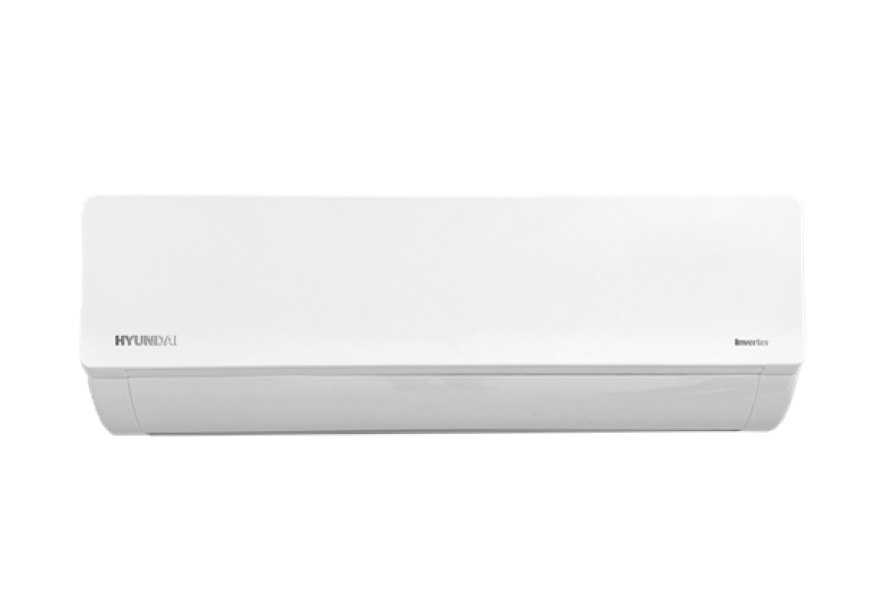

| Model | WINTERPACK HYU-12HRFN8 | ||
| Power supply | Ph-V-Hz | 220-240V,1Ph , 50Hz | |
| Rated Cooling | Capacity | kW | 3.5(1.1~3.8) |
| Cooling Power input | kW | 1.46(0.08~1.50) | |
| Cooling Current | A | 6.3(0.8~6.7) | |
| EER | w/w | 2.39 | |
| Rated Heating | Capacity | kW | 3.81(1.08~4.05) |
| Heating Power input | kW | 1.19(0.17~1.35) | |
| Heating Current | A | 5.4(1.4~6.0) | |
| COP | w/w | 3.20 | |
| Seasonal Cooling | Pdesignc | kW | 3.5 |
| SEER | W/W | 6.5 | |
| Energy Efficiency Class | A++ | ||
| Heating/Average | Pdesignh | kW | 2.8 |
| SCOP | W/W | 4.1 | |
| Energy Efficiency Class | A+ | ||
| Tbiv | ℃ | -7 | |
| Heating/Warmer | Pdesignh | kW | 3.0 |
| SCOP | W/W | 5.2 | |
| Energy Efficiency Class | A+++ | ||
| Tbiv | ℃ | 2 | |
| Tol | ℃ | -20 | |
| Moisture Removal | L/h | 1.2 | |
| Max. input consumption | W | 2200 | |
| Max. current | A | 10.0 | |
| Compressor | Model | KSN98D13UEZ32 | |
| Type | ROTARY | ||
| Brand | GMCC | ||
| Capacity | W | 3050 | |
| Input | W | 800 | |
| Rated current(RLA) | A | 4.95 | |
| Refrigerant oil/oil charge | ml | POE VG74 280±10 ml | |
| Indoor fan motor | Model | ZKFP-31-8-1L | |
| Indoor Motor Qty | 1 | ||
| Speed(Hi/Mi/Lo) | r/min | 1020/890/820 | |
| Indoor coil | a.Number of rows | 1 | |
| b.Tube pitch(a)x row pitch(b) | mm | 18×17.3 | |
| c.Fin spacing | mm | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ5,Inner groove tube | |
| f.Coil length x height x width | mm | 620x72x17.3+620x108x23.2+620x108x17.3 | |
| g.Number of circuits | 2 | ||
| Indoor air flow (Hi/Mi/Lo/Si) | m3/h | 590/420/340/190 | |
| Indoor noise level (Hi/Mi/Lo/Si) | dB(A) | 39.0/32.0/24.0/20.0 | |
| Indoor sound power level | dB(A) | 56 | |
| Indoor unit | Dimension(W*D*H) | mm | 813×201×289 |
| Packing (W*D*H) | mm | 870×270×365 | |
| Net/Gross weight | Kg | 7.4/9.7 | |
| Outdoor fan motor | Model | ZKFN-25-10-6L | |
| Speed | r/min | 810/700/600 | |
| Outdoor coil | a.Number of rows | 1.0 | |
| b.Tube pitch(a)x row pitch(b) | mm | 18×17.3 | |
| c.Fin spacing | mm | 1.3 | |
| d.Fin type (code) | Hydrophilic aluminum | ||
| e.Tube outside dia.and type | mm | Φ5,Inner groove tube | |
| f.Coil length x height x width | mm | 695x468x17.3 | |
| g.Number of circuits | 3 | ||
| Outdoor air flow | m3/h | 1750 | |
| Outdoor sound pressure level | dB(A) | 56.0 | |
| Outdoor sound power level | dB(A) | 63 | |
| Outdoor unit | Dimension(W*D*H) | mm | 720×270×495 |
| Packing (W*D*H) | mm | 835×300×540 | |
| Net/Gross weight | Kg | 20.4/22.3 | |
| Refrigerant | Type | R32 | |
| GWP | 675 | ||
| Charged quantity | Kg | 0.49 | |
| Design pressure | MPa | 4.3 / 1.7 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | 6.35mm(1/4in) / 9.52mm(3/8in) |
| Max. refrigerant pipe length | m | 25 | |
| Max. difference in level | m | 10 | |
| Connection wiring | 1.5×5 | ||
| Plug type | no plug | ||
| Thermostat type | Remote Control | ||
| Room temperature | Indoor(cooling/ heating) | ℃ | 16～32 / 0～30 |
| Outdoor(cooling/heating) | ℃ | -15～50 / -20～24 | |
| Application area (Cooling Standard) | m2 | 16~23 | |
| Qty’per 20’ /40’ /40’HQ | 132/280/305 | ||
